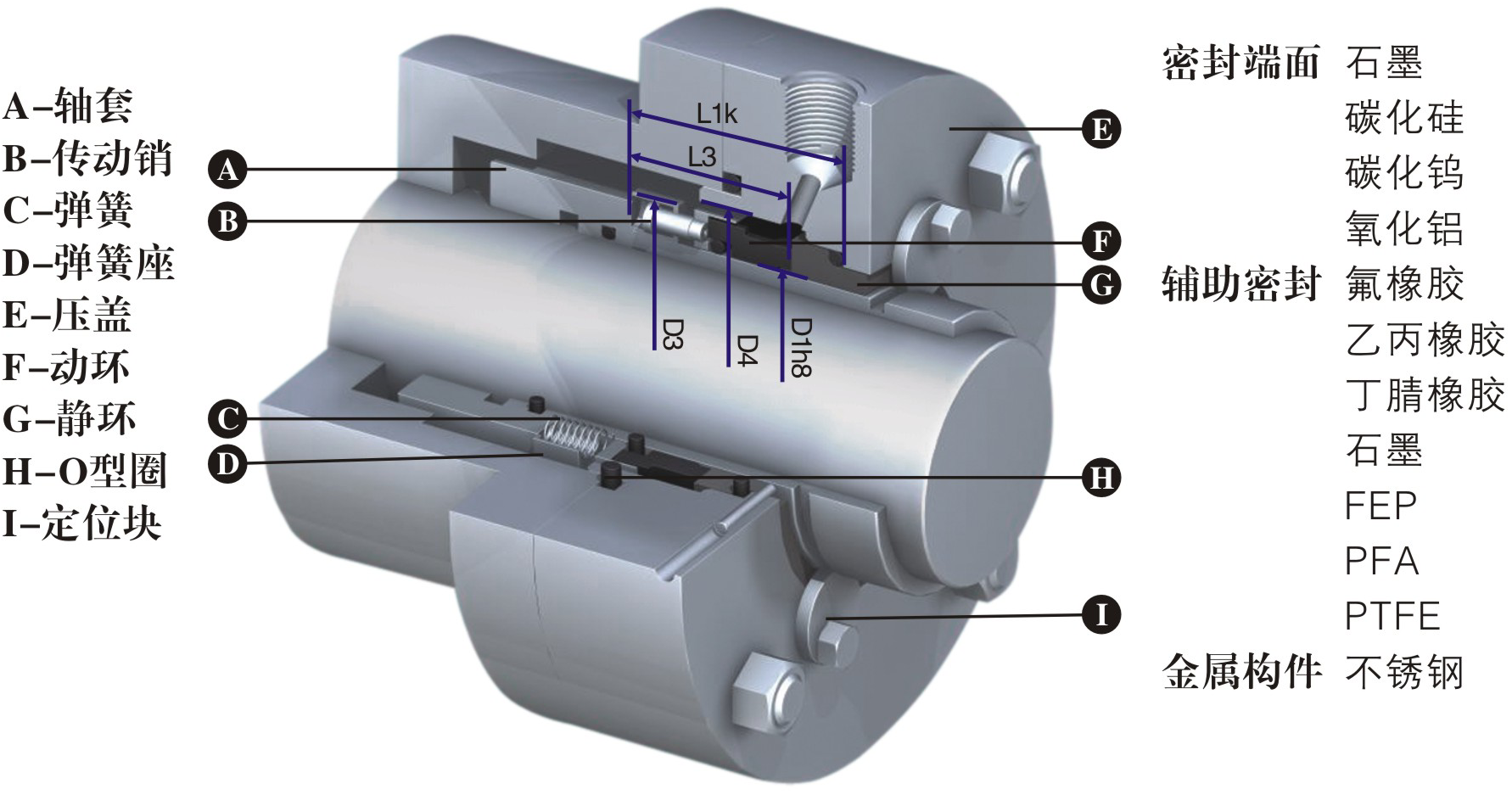

DM8U系列密封
DM8U系列密封
DM8U系列密封
| 尺寸规格 | D1 | D3 | D4 | L1K | L3 |
| 14 | 14 | 24 | 26 | 35.0 | 25.0 |
| 16 | 16 | 26 | 28 | 35.0 | 25.0 |
| 18 | 18 | 32 | 34 | 37.5 | 25.5 |
| 20 | 20 | 34 | 36 | 37.5 | 25.5 |
| 22 | 22 | 36 | 38 | 37.5 | 25.5 |
| 24 | 24 | 38 | 40 | 40.0 | 28.0 |
| 25 | 25 | 39 | 41 | 40.0 | 28.0 |
| 28 | 28 | 42 | 44 | 42.5 | 30.5 |
| 30 | 30 | 44 | 46 | 42.5 | 30.5 |
| 32 | 32 | 46 | 48 | 42.5 | 30.5 |
| 33 | 33 | 47 | 49 | 42.5 | 30.5 |
| 35 | 35 | 49 | 51 | 42.5 | 30.5 |
| 38 | 38 | 54 | 58 | 45.0 | 32.0 |
| 40 | 40 | 56 | 60 | 45.0 | 32.0 |
| 43 | 43 | 59 | 63 | 45.0 | 32.0 |
| 45 | 45 | 61 | 65 | 45.0 | 32.0 |
| 48 | 48 | 64 | 68 | 45.0 | 32.0 |
| 50 | 50 | 66 | 70 | 47.5 | 34.0 |
| 53 | 53 | 69 | 73 | 47.5 | 34.0 |
| 55 | 55 | 71 | 75 | 47.5 | 34.0 |
| 58 | 58 | 78 | 83 | 52.5 | 39.0 |
| 60 | 60 | 80 | 85 | 52.5 | 39.0 |
| 63 | 63 | 83 | 88 | 52.5 | 39.0 |
| 65 | 65 | 85 | 90 | 52.5 | 39.0 |
| 68 | 68 | 88 | 93 | 52.5 | 39.0 |
| 70 | 70 | 90 | 95 | 60.0 | 45.5 |
| 75 | 75 | 99 | 104 | 60.0 | 45.5 |
| 80 | 80 | 104 | 109 | 60.0 | 45.0 |
| 85 | 85 | 109 | 114 | 60.0 | 45.0 |
| 90 | 90 | 114 | 119 | 65.0 | 50.0 |
| 95 | 95 | 119 | 124 | 65.0 | 50.0 |
| 100 | 100 | 124 | 129 | 65.0 | 50.0 |
