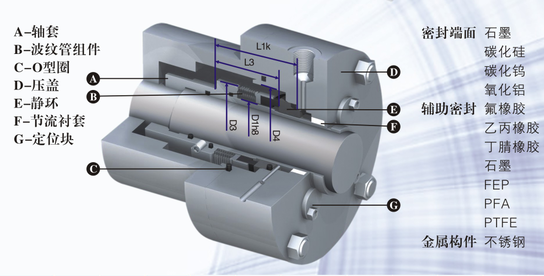

DMG-A系列密封
DMG-A系列密封
DMG-A系列密封
DMG-A系列密封
| 尺寸规格 | D1 | D3 | D4 | L1K | L3 |
| 20 | 20 | 34.0 | 36 | 37.5 | 25.5 |
| 22 | 22 | 36.0 | 38 | 37.5 | 25.5 |
| 24 | 24 | 38.0 | 40 | 40.0 | 28.0 |
| 25 | 25 | 39.0 | 41 | 40.0 | 28.0 |
| 28 | 28 | 42.0 | 44 | 42.5 | 30.5 |
| 30 | 30 | 44.0 | 46 | 42.5 | 30.5 |
| 32 | 32 | 46.0 | 48 | 42.5 | 30.5 |
| 33 | 33 | 47.0 | 49 | 42.5 | 30.5 |
| 35 | 35 | 49.0 | 51 | 42.5 | 32.0 |
| 38 | 38 | 52.5 | 56 | 45.0 | 32.0 |
| 40 | 40 | 54.5 | 58 | 45.0 | 32.0 |
| 43 | 43 | 58.0 | 62 | 45.0 | 32.0 |
| 45 | 45 | 60.0 | 64 | 45.0 | 32.0 |
| 48 | 48 | 63.0 | 67 | 45.0 | 32.0 |
| 50 | 50 | 66.0 | 70 | 47.5 | 34.0 |
| 53 | 53 | 69.0 | 73 | 47.5 | 34.0 |
| 55 | 55 | 71.0 | 75 | 47.5 | 34.0 |
| 58 | 58 | 74.0 | 78 | 52.5 | 39.0 |
| 60 | 60 | 76.5 | 80 | 52.5 | 39.0 |
| 63 | 63 | 79.5 | 84 | 52.5 | 39.0 |
| 65 | 65 | 81.5 | 86 | 52.5 | 39.0 |
| 68 | 68 | 85.0 | 89 | 52.5 | 39.0 |
| 70 | 70 | 88.0 | 92 | 60.0 | 45.5 |
| 75 | 75 | 93.5 | 98 | 60.0 | 45.5 |
| 80 | 80 | 98.5 | 103 | 60.0 | 45.0 |
| 85 | 85 | 105.0 | 110 | 60.0 | 45.0 |
| 90 | 90 | 110.0 | 115 | 65.0 | 50.0 |
| 95 | 95 | 115.0 | 120 | 65.0 | 50.0 |
| 100 | 100 | 120.0 | 125 | 65.0 | 50.0 |
